경제적이고 효율성이 높은 상수, 순수, RO수, 공정수, 재이용수 순도 확인 센서 및 지시계
CCT-3300 시리즈는 고정밀 수질 측정을 위한 전도도계로, RO 여과 전후의 수질 변화를 실시간으로 확인하는 데 최적화된 장비입니다.
Conductivity monitor CCT-3320T (no relay, no control function)
With one pc 1.0cm-1 plastic sensor CON1134-13(NTC10K), isolated 4-20mA measurement range 20/200/2000 micro siemens switched automatically. Power supply AC220V.

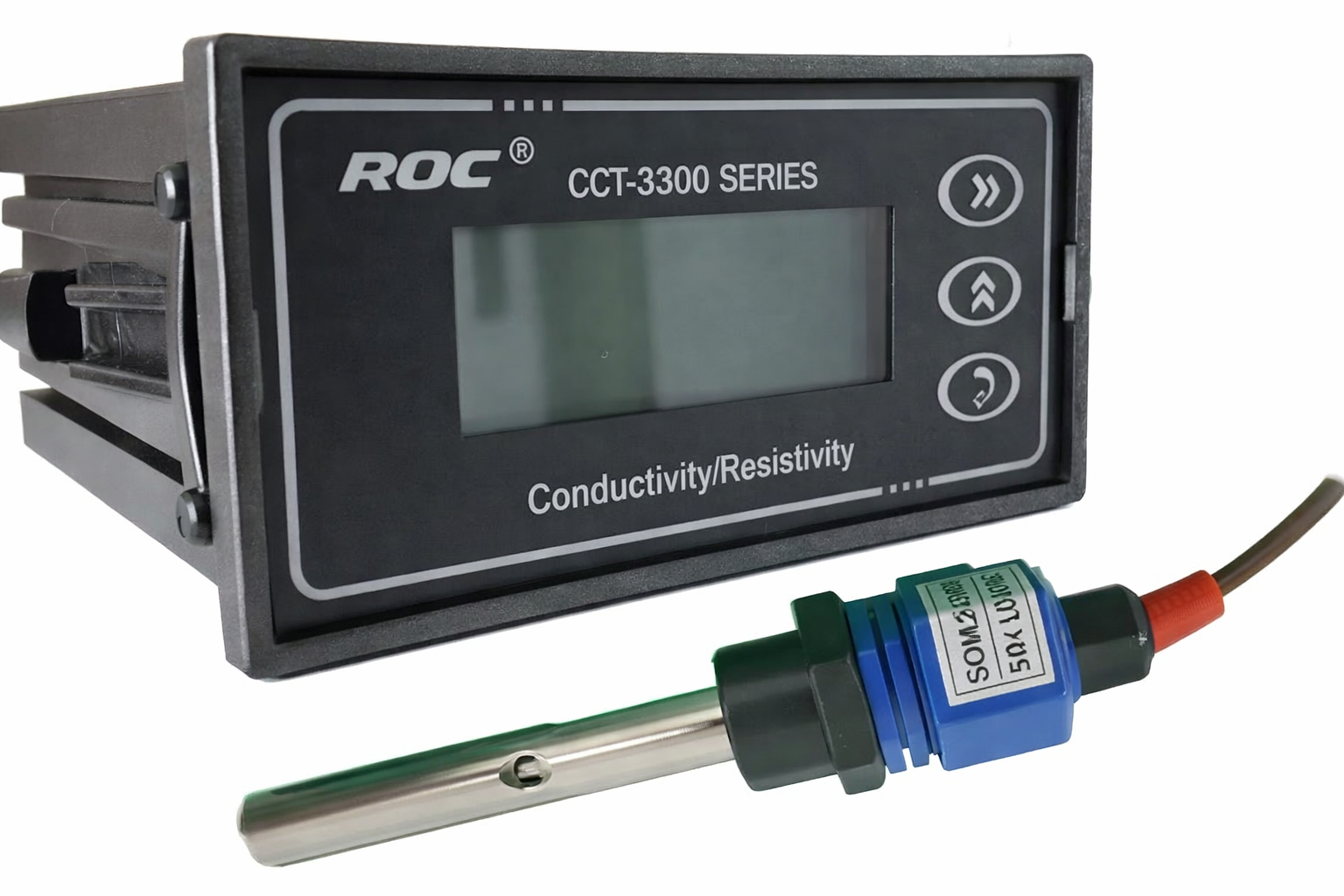

CCT-3300 Conductivity Controller (지시계)
Conductivity Electrode (전극/센서)
| Model | CCT-3300 Series Conductivity Controller | |||
|---|---|---|---|---|
| Conductivity cell model | CON2136-13 | CON1134-13 | CON3133-13 | CON5131-13 |
| Constant | 10.00cm-1 | 1.000cm-1 | 0.100cm-1 | 0.010cm-1 |
| Measurement range | (0.5~20) mS/cm | (1.0~2000) μS/cm | (0.5~200) μS/cm | (0.05~18.25) M Ω ·cm |
| Measurement parameter | Measurement range | Resolution | Accuracy |
|---|---|---|---|
| Conductivity | 0.50μS/cm ~ 20.00mS/cm | 0.01μS/cm | 1.5 |
| Resistivity | 0.05M Ω ·cm ~ 18.25M Ω ·cm | 0.01M Ω ·cm | 2.0 |
| TDS | 0.25ppm ~ 10.00ppt | 0.01ppm | 1.5 |
| Temp. | 0 ~ 50℃ | 0.1℃ | ±0.5℃ |
| Temp. element | NTC10K |
|---|---|
| 4-20mA output | Isolated, reversible, adjustable, instrument/transmitting mode for selection. Loop resistance 400 Ω (Max)DC24V |
| Control contact | SPDT relay, Load capacity AC230V/5A(Max). Note: CCT-3320T has no relay |
| Storage environment | Temp:(-20~60)℃, relative humidity:≤85%RH (none condensation) |
| Working environment | Temp:(0~50)℃, relative humidity:≤85%RH (none condensation) |
| Dimension | 48 mm × 96 mm × 80mm (H × W × D) |
| Installation | 44mm × 92mm / Panel mounted, fast installation |
| Model | Power supply | Cell constant | Connection | Electrode material |
|---|---|---|---|---|
| CCT-3300E | DC 24V | 0.01 cm-1 0.10 cm-1 1.00 cm-1 10.00 cm-1 |
thread ferrule |
316L+titanium 316L 316L plastic graphite |
| CCT-3310E | AC 110V | |||
| CCT-3320E | AC 220V | |||
| CCT-3320 | AC 220V | |||
| CCT-3320T | AC 220V |
